Application: GC60-LR

Product Type: LR

Product Material: Malleable Iron (Zinc Plated or Hot Dip Galvanized)

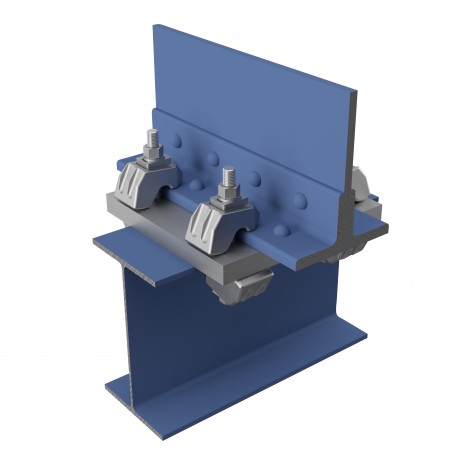

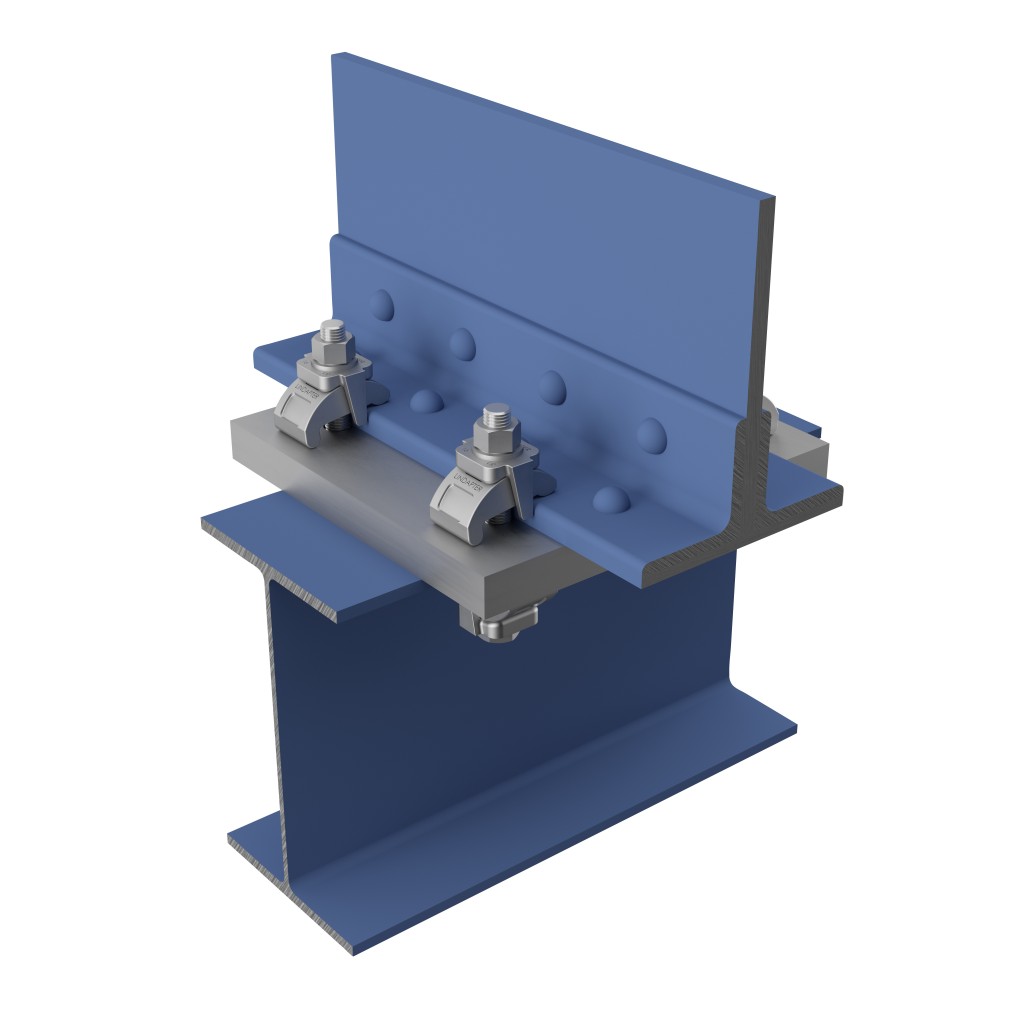

Beam to riveted beam crossing at 90°

Supporting Section: Riveted Beam
Supported Section: Beam
Connection Components: Location plate, spacer plates, 8 clamps and 4 bolts, nuts & washers

Safe Working Loads

Clamp Size Tension Capacity Slip Capacity
1/2" 5216 lbs 404 lbs
5/8" 7644 lbs 764 lbs
3/4" 13220 lbs 1348 lbs
1" 17720 lbs 2024 lbs

Send a design request to our technical support team

  • Product Category: Girder Clamps
  • Connection Type: Beam to riveted beam crossing at 90°
  • Clamp Type: Type LR

If you have any files that complement your technical request please attach them.

Faster to Install

No drilling or welding!

Independently Approved

Reasons to choose Lindapter

  • Save time and money

    Save time and money

    Clamping two steel sections together avoids time-consuming welding or conventional drilling and bolting.

  • Safer connections

    Safer connections

    Drilling and welding in the field is avoided, removing the need for hot work permits and encouraging safer site conditions.

  • High strength

    High strength

    Lindapter clamps are manufactured from high strength materials to resist high load requirements and harsh environments.

  • Industry leading approvals

    Industry leading approvals

    Lindapter has earned a reputation synonymous with safety and reliability, gaining multiple independent approvals.

  • Adjustable

    Adjustable

    Quickly align steel sections by sliding the section into the correct position before tightening the Girder Clamp to complete the installation.

  • Free connection detailing

    Free connection detailing

    Lindapter’s experienced Engineers can detail a custom connection based on your specific requirements free of charge.
