Type GF Grate-Fast™
A high strength floor fixing for securing rectangular open bar grating to the supporting steelwork without the need for on-site drilling or welding.
Overview

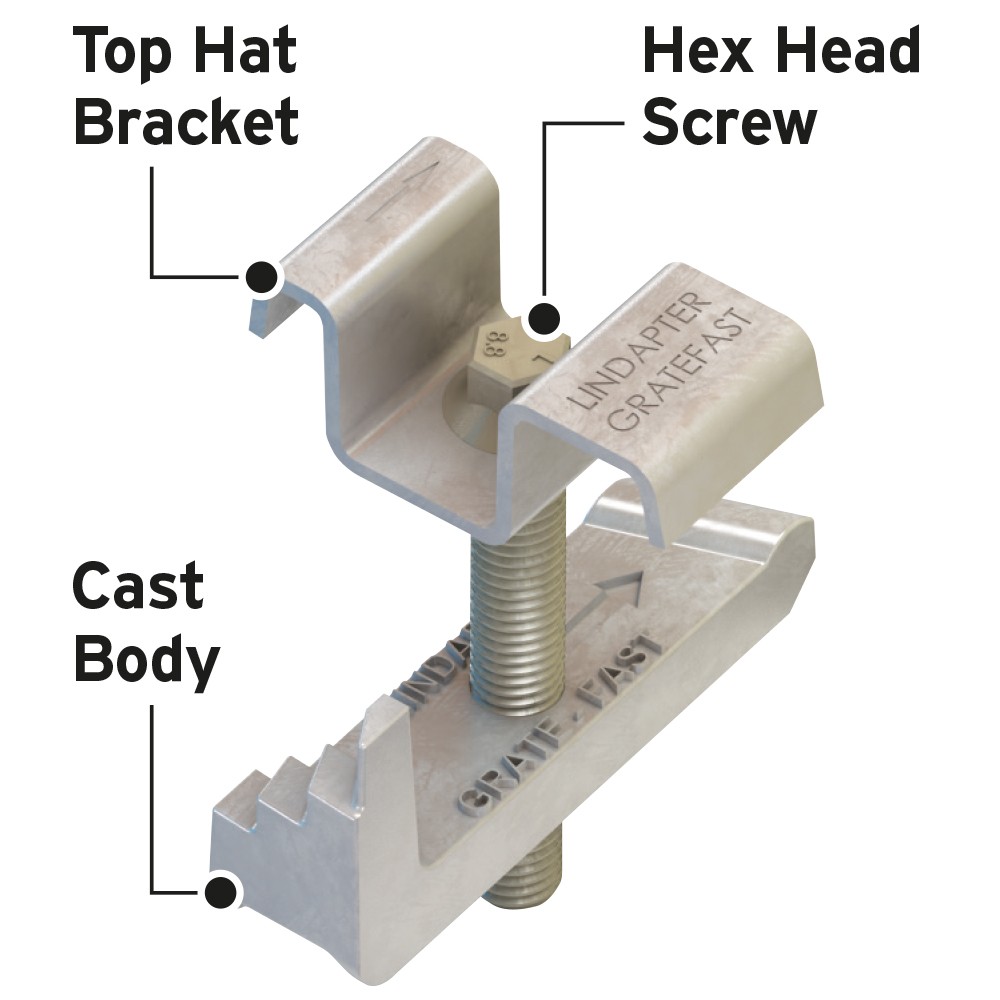

The Type GF Grate-Fast fixing eliminates the need for costly scaffolding or elevated floors as access to the underside of the flooring is not required. Installation is carried out quickly and safely from above, often by one person, significantly reducing costs. The malleable iron cast body along with the unique stepped clamping face, which locks under the steelwork, provides outstanding clamping force and a secure connection.
Features & Benefits
- Superior clamping force from the cast body.
- Lloyd’s Register Type Approval for resistance to shock and vibration.
- Pre-assembled fixing for quick and easy installation.
- Designed for pedestrian walkways only.
- Easy to remove for maintenance access.
Approvals
Click on an approval logo to download the certificate or report.
Properties
- Material:
• Top Hat:
◦ Stainless steel grade 304 (GF08 only).
◦ Mild Steel, hot dip galvanised (GF10HDG & GF210HDG only).
• Body:
◦ Malleable iron, Sheraplex (GF08 only).
◦ Malleable iron, hot dip galvanised (GF10HDG & GF210HDG only).
- Reaction to fire: A1 (Steel)
Durability and corrosion protection:
| Corrosivity Class | Galvanised Steel | Electroplated Steel |
| C1 | More than 50 years | More than 20 years |
| C2 | More than 50 years | More than 5 years |
| C3 | More than 20 years | Not suitable |
For C4 and C5 corrosion categories contact us.
Technical Specification
| Product Code | Bolt 8.8 | Flange | Grating Bar Depth | Grating Bar Width | Bar Distance | Tightening Torque | Across Flats |
|---|---|---|---|---|---|---|---|
| Z | T | D | W | X | |||
| mm | mm | mm | mm | Nm | mm | ||
| GF081) | M8 | 3 - 19 | 22 - 38 | 5 - 10 | 19 - 48 | 5 | 6 |
| GF10HDG2) | M10 | 3 - 19 | 20 - 50 | 3 - 7 | 25 - 45 | 11 | 10 |
| GF210HDG2) | M10 | 3 - 19 | 19 -40 | 3 - 6.5 | 30 | 11 | 10 |
1) Supplied with socket head cap screw.
2) Supplied with hex head screw.
Safe Working Loads (GF08/GF10HDG/GF210HDG): Tensile = 1.6kN/bolt (4:1 FoS) Slip = 0.5kN/4 bolts (4:1 FoS)
For Characteristic Resistances when designing a connection to Eurocode 3, please refer to DoC No.114
For Characteristic Resistances when designing a connection to Eurocode 3, please refer to DoP No.014
